Clay Brick Plate Feeding Machine 40 - 50m3/H Capacity For Conveying Raw Materials

Brand Name : BBT

Model Number : GD450A/GD600A

Place of Origin : Chongqing, China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : 45 days

Packaging Details : Suitable for sea shipment by container

Automatic : Yes

Name : Box Feeder

Condition : New

Raw material : clay

Type : clay brick making machine

Processing : Brick Production Line

Capacity : 30-50m3/hr

Weight : 3600kg

Dimension(l*w*h) : 6,770*2,120*1,330mm

Contact Now

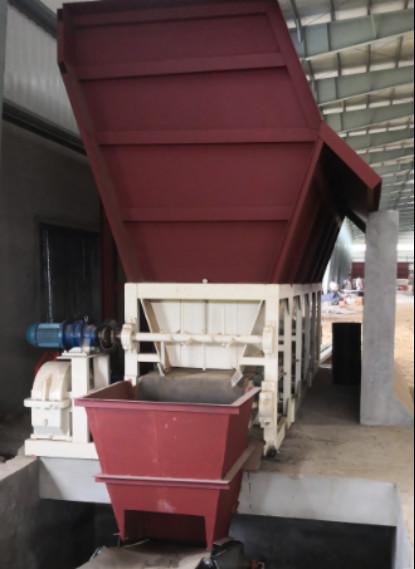

Plate feeder is the supply of conveying raw materials Production capacity 40-50m3/h

Description

This machine is rationing equipment of materials and fuels for brick production line, which is suitable for all kinds of bulk materials. it is the ideal equipment to control the feeding speed and adjust the feeding quantity. The equipment is characterized by convenient operation, safe, reliable and stable operation and wide range of use.

Technical Parameters

No.	Model	GD450A	GD600A
1	Code	IBS061-0706	IBS061-0705
2	Production capacity	30-40m3/h	40-50m3/h
3	Width of belt	800mm	800 mm
4	Speed of belt	5.3m/min	5.3m/min
5	Power	5.5+3KW	5.5+3KW
6	Reducer	i=48.57	i=48.57
7	Dimension	5,2702,1201,330mm	6,7702,1201,330mm
8	Weight	2,300kg	3,600kg

Our service

Welcome to contact with BBT

BBT supply following machinery and project :

1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)

2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )

3. Brick kiln project ( hoffman kiln, tunnel kiln )

4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)

5. Kiln firing system ( coal / gas /oil combustion system ,control system )

6. Whole brick making project design and construction .
